Macroblock and Juxin Optoelectronics successfully held 2026 LED Display Symposium at the Shenzhen Marriott Hotel. In addition to the main-stage sessions, which focused on display industry trends and technology sharing, the exhibition area featured four major product highlights: MBS7263, a next-generation common-anode LED driver IC; MBS7986, a MOSFET IC designed for common-anode architectures; MBI5292, Macroblock’s classic flagship common-anode LED driver IC; and MBS7764, a next-generation common-cathode LED driver IC for MiP and COB applications. The MBEyes Display Inspection System was also showcased, demonstrating Macroblock’s expanded deployment in display quality inspection and end-customer services.

Next-Generation Common-Anode LED Driver IC MBS7263 for Rental, Fixed Installation, and Transparent Displays
16 channels / Up to 32-scan / Current: 1–28 mA
MBS7263 is Macroblock’s next-generation common-anode LED driver IC, developed for a broad range of applications including rental displays, indoor and outdoor fixed-installation displays, and transparent displays. Featuring 16 channels and support for up to a 32-scan design, MBS7263 enables flexible scan-number configurations according to customer requirements. It delivers high-specification display performance in low-scan designs while balancing image quality and system efficiency in high-scan configurations.

For rental applications where fast installation, stable display performance, and high reliability are essential, MBS7263 supports LED display integration across different package types, offering end users greater flexibility. In scenarios that involve filming, its stable “Low Gray Refresh Multiplier” function helps reduce banding and flicker issues commonly seen when capturing low-brightness images, minimizing the need for post-production and accelerating the creation of secondary promotional content.

In addition, fixed-installation and transparent display applications place high demands on brightness, grayscale performance, and image uniformity. MBS7263 further enhances visual performance by improving its ability to address coupling issues, helping displays present stable and refined images across diverse application scenarios.

LED MOSFET IC MBS7986 | Designed for Common-Anode LED Driving Architecture
8 channels / Up to 2.5A output current per channel
MBS7986 is an 8-channel MOSFET IC developed by Macroblock for common-anode LED driving architecture. With an output current of up to 2.5A per channel, it helps mitigate issues that may arise in high-scan LED displays, including irregular module flicker during power-on, coupling interference, ghosting, and other artifacts that may emerge over extended operation. By enhancing image stability and overall display quality, MBS7986 helps reduce the risk of end users misinterpreting abnormal display behavior as a screen failure.

MBS7986 also follows the pin configuration of mainstream MOSFET ICs, allowing customers to adopt and upgrade the solution more quickly on existing design platforms while improving development efficiency, supply flexibility, and display performance.

Classic Flagship Common-Anode LED Driver IC MBI5292 | For High-End Visual Requirement Applications
16 channels / Up to 32-scan / Current range: 0.4–20 mA
The MBI5292 display, jointly showcased with LianTronics, fully demonstrated its flagship-level display capability for high-end visual performance applications. With 19-bit grayscale performance closely aligned with HDR EOTF, together with Macroblock’s unique “Low Gray Color Shift Removal” function, MBI5292 effectively compensates for color temperature shifts at low grayscale levels, enabling more accurate and natural presentation of dark details and color performance. Its “Low Gray Refresh Multiplier” function also helps reduce flicker and banding issues commonly seen in professional camera shooting and smartphone recording, improving camera friendliness and lowering post-production requirements. Whether viewed directly or captured through video cameras, MBI5292 helps LED displays deliver a more impactful and realistic visual experience.

Common-Cathode LED Driver IC MBS7764 | Targeting MiP/COB Applications
16 channels / Up to 64-scan / Current range: 0.3–18 mA
MBS7764 is Macroblock’s next-generation common-cathode LED driver IC, precisely targeting high-end display applications such as MiP and COB. Samples are expected to be available in Q4. In terms of specifications, MBS7764 can achieve a refresh rate of 15,360Hz under a full 64-scan design, helping enhance the overall performance of MiP and COB products in terms of high refresh rate, high image quality, and high stability, while further expanding the application coverage of common-cathode LED displays in the high-end market.

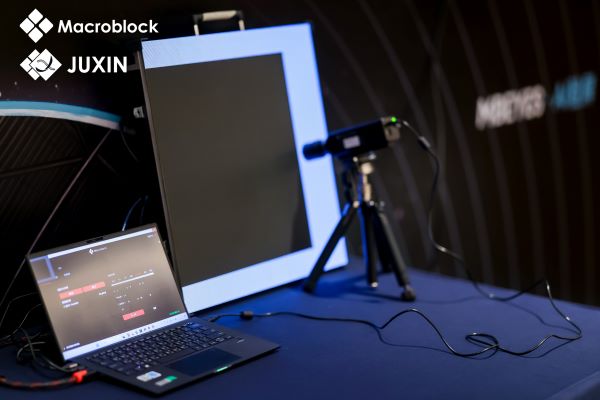

MBEyes Display Inspection System | Display Health Report: Revealing True Specifications and True Performance
How should the quality of a display be evaluated? Beyond the specifications listed on paper, visual performance is difficult to quantify and is often judged by the human eye, making human perception a significant variable.

MBEyes uses an intelligent inspection process to help customers quickly understand display status. The inspection is divided into three major categories: basic specifications, optical indicators, and image quality, the latter of which has traditionally been the most subjective area. Through high-efficiency image capture, AI algorithm analysis, optical instruments, and related equipment, the system evaluates 21 items and provides scoring results.

Through the on-site demonstration, MBEyes highlighted Macroblock’s comprehensive deployment beyond driver ICs, extending further into display quality management and customer services. The system helps display makers and customers verify product specifications with greater precision and efficiency, allowing the true specifications and true performance of displays to be clearly presented.

Through the exhibition area at this symposium, Macroblock presented a comprehensive product portfolio spanning common-anode and common-cathode LED driver ICs, MOSFET ICs, and MBEyes Display Inspection System. The showcase demonstrated the company’s technical strength in continuously responding to the display industry’s demand for high image quality, high refresh rates, high stability, and intelligent inspection. Looking ahead, Macroblock will continue to build on its core driver technology and work closely with industry partners to enable more precise, reliable, and competitive visual experiences for LED displays across a wider range of application scenarios.

(Photo credit: Macroblock)
